Andrew was one of my pupils at Royal High. He built this banjo from November 2011 to May 2012, working for around an hour and a half after school each week. He did it is as a portfolio piece, not related to a particular course. Andrew was in year S6.
I marked out and rough cut the neck and instrument stand at the band saw, but Andrew did almost all the rest.

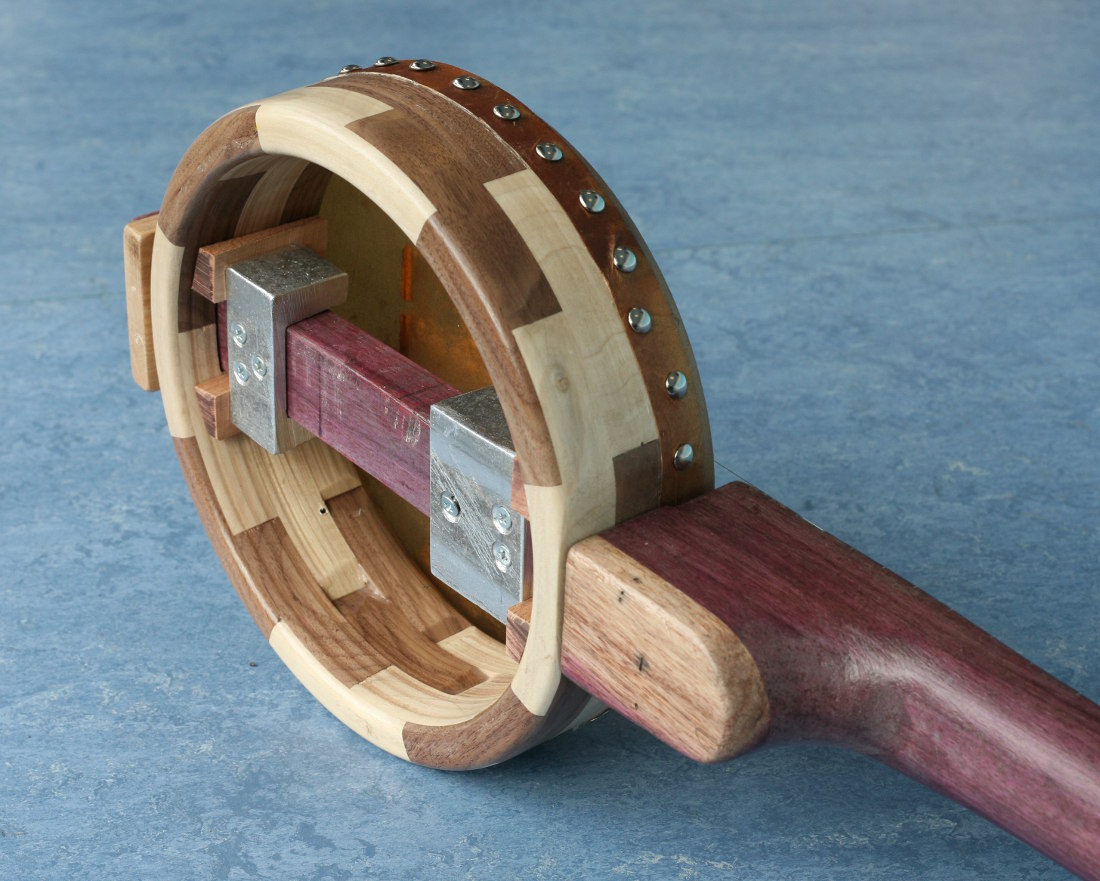

The rim (pot) was turned on the wood lathe from twenty-four hardwood segments of a tropical hardwood. The neck was formed from a tropical hardwood. Andrew opted to stain the neck and tail piece. This added several hours of work to the project. The timber was wet and allowed to dry several times, sanding down each time. Several coats of black stain were applied, then several coats of varnish on top.

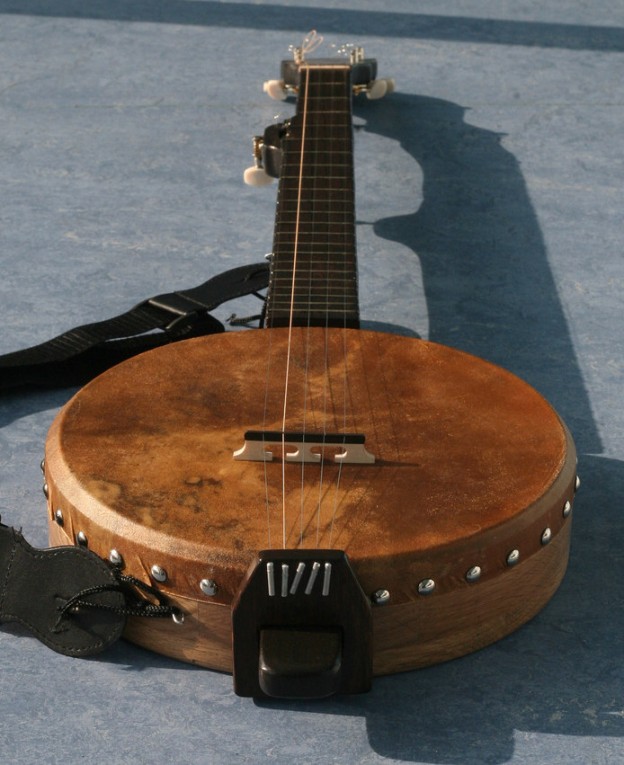

Calf skin was soaked in coffee, to accentuate its natural colour variations, then stretched over a brass tone ring and fixed to the rim with furniture tacks. The brass tone ring was formed in school from 6mm round bar, bent using a ring roller. Its ends were soldered together at the brazing hearth.
Guitar fret wire has been used instead of banjo wire, as it’s easier to press in place than banjo fret wire. The neck was fixed to the rim using cast aluminium brackets (cast in-house) and hardwood wedges. Steel strings were fitted.
The instrument stand is made from 4mm birch plywood. Its components are a friction fit, and easily dismantle for transportation in an instrument bag. Bicycle rubber inner tube has been glued to the plywood, to prevent the banjo being marked by the stand.
High Resolution photos of the finished banjo, along with construction images, are available at Royal HIgh CDT’s Flickr account:
